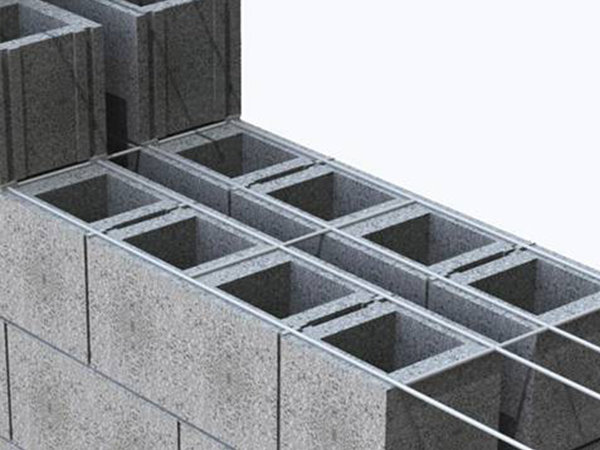

Brick Wall Reinforcing Mesh

Masonry mesh, also called masonry wall reinforced mesh, is used for concrete construction reinforcement, normally used for the wall reinforcement. It is a welded and fabricated steel reinforcing structure which is laid in the bed joint to strengthen masonry panels without thickening the wall. It can prevent or reduce cracking in walls by bonding the masonry units together so as to strengthen the masonry panel where it is installed.

Variety according to shapes

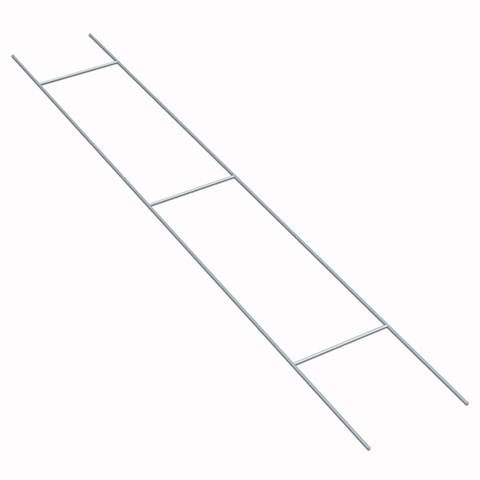

Ladder mesh

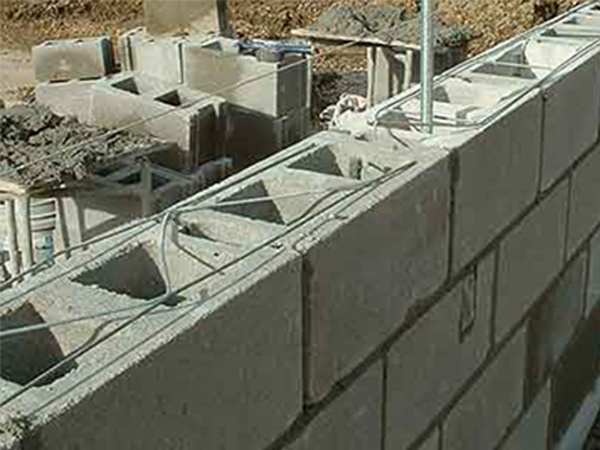

Truss mesh reinforcement

T shape masonry mesh

Brick welded mesh

Expanded Metal Reinforcement

Different materials and surface treatment:

Ladder mesh

• Material: Low carbon steel wire, stainless steel wire, galvanized steel wire. Welded before electric-galvanized.
  Welded after electric-galvanized.
  Welded before hot dipped galvanized.
  Welded after hot dipped galvanized.
  Welded by stainless steel wire.
  Galvanized steel, stainless steel for Expanded Metal Reinforcement

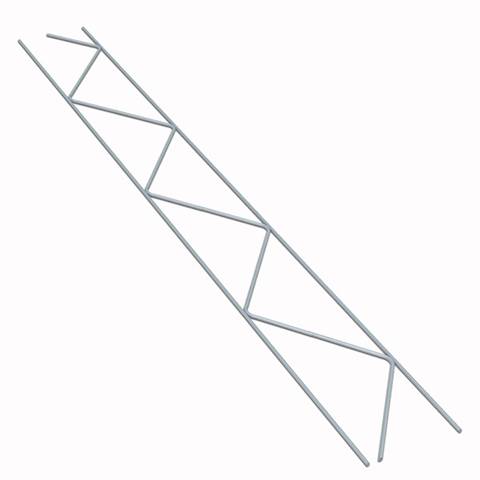

Truss mesh reinforcement

• Ladder mesh width: 4" – 16".
• Light ladder mesh: wire 9 ga. side rods × 9 ga. cross rods.
• Heavy ladder mesh: 3/16" side rods × 9 ga. cross rods.
• Super heavy duty ladder mesh: 3/16" side rods × 3/16" cross rods.
• Standard length: 10' (3.05m).

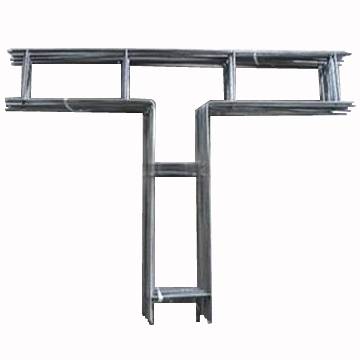

T shape masonry mesh

• Wire diameter: 2.5mm - 8.0mm.
• Typical use: it can be used for brick wall corner reinforcement because of its typical T shape.

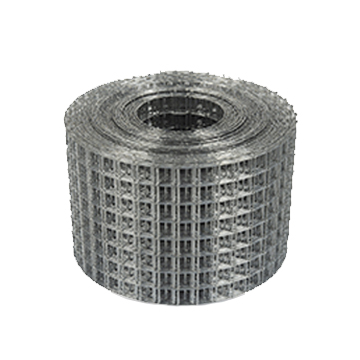

Brick welded mesh

• Wire diameter: 2.5mm - 8.0mm.
• Length: as your requirement.
• Typical use: in rolls, it can be cut and bent easily.

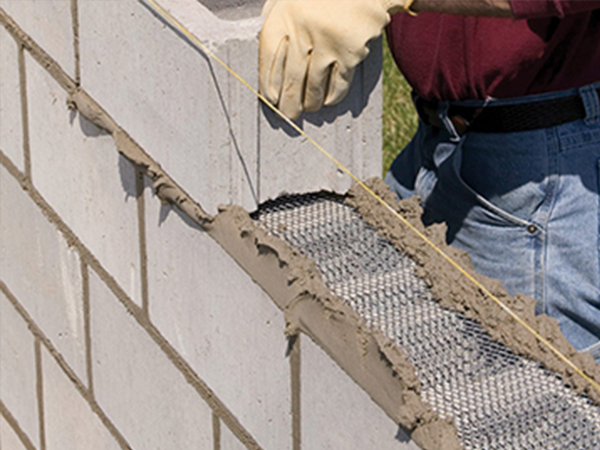

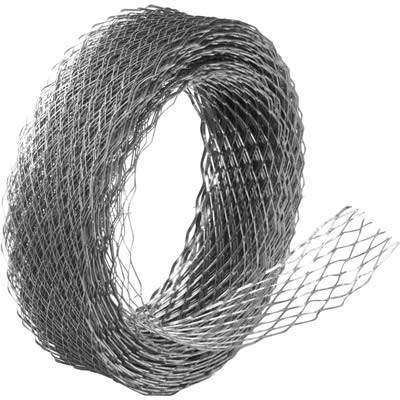

Expanded Metal Reinforcement

• SWD x LWD: 15x25mm
• Width: 65mm, 100mm, 175mm, 225mm, 300mm
• Length: 20m

Features

• High rigidity, strength and stability.
• Welding spots of warp wire and weft wire are on the same surface.
• Continuous length of joint reinforcement.
• Corrosion and rust resistant.
• Durable and long service life.

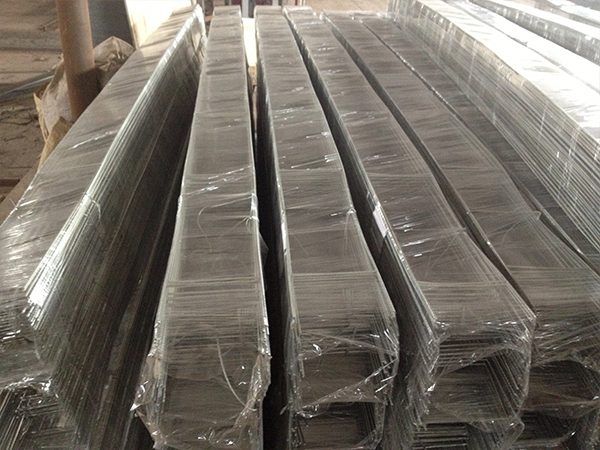

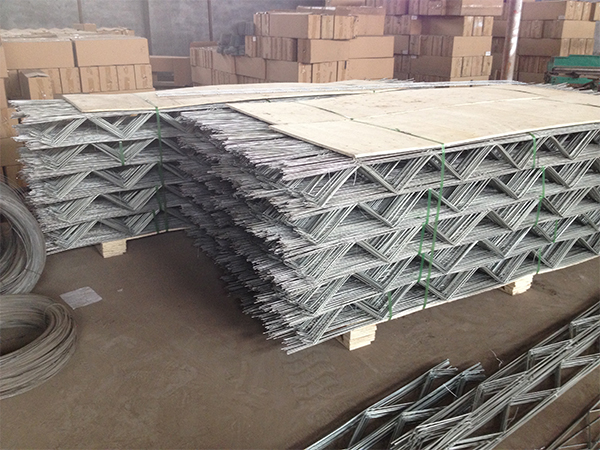

Packaging & Delivery

• 50 pieces per bundle, 20 bundles per pallet. (North America market)
• 25 pieces per bundle, 40 bundles per pallet. (Europe market)

Applications

• Block slab structure reinforcing.
• Hollowed slabs reinforcing.
• Building wall reinforcing.
• Support wall reinforcing.
• Concrete ground reinforcing.
• Bridge reinforcing.
• Bank reinforcing.
• Airport reinforcing.
