Stainless Steel Rope Mesh

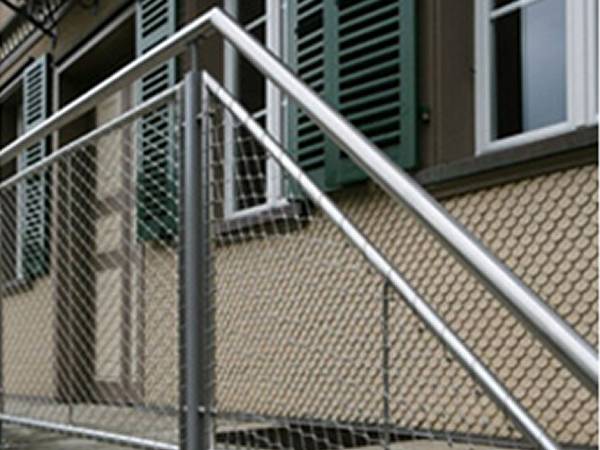

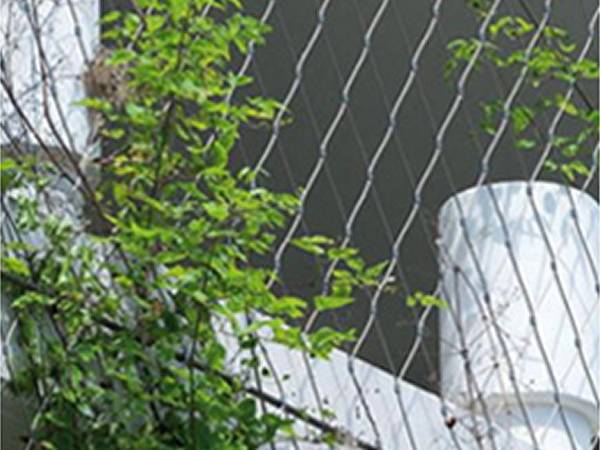

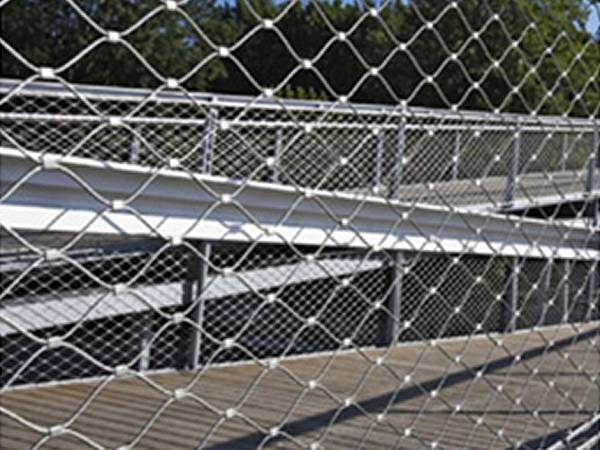

Stainless steel, a versatile material with elegance and robustness, has inspired architectural designers for projects of all kinds. Constructed of quality stainless steel wire ropes, flexible wire rope mesh has unique characteristics that allow design flexibility in architecture. It incorporates the tensile strength of the indestructible stainless steel and aesthetically diamond opening which is graceful and beautiful. All stainless steel rope meshes are manufactured to ISO 9001 standards. The mesh is light, robust and transparent, and it can stand up to heavy loads, and now it has been widely used as balustrade infill system, zoo enclosures, tensile facade, safety netting and green wall systems in interior and exterior applications.

Specification:

Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: silver or black oxide finish.
Construction of wire cable: 7 × 7, 7 × 19.
Cable diameter: 1.0–5.0 mm.
Mesh opening sizes: 20–200 mm.
Mesh opening angles: 20 , 30 , 60 , 70 , 75 . Mesh aperture at 60 as standard opening.
Connection: ferrule or knotted.
Certification: certified to EN1263-1 for static and dynamic load capacity.

The type of stainless steel rope mesh

Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

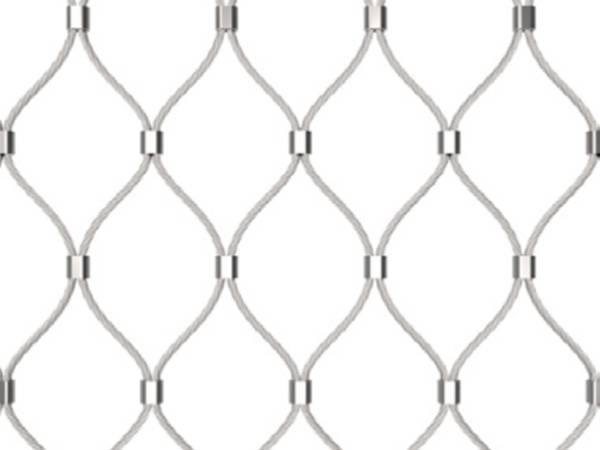

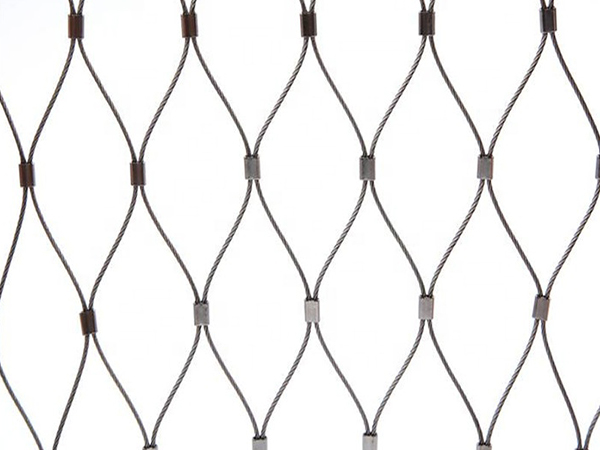

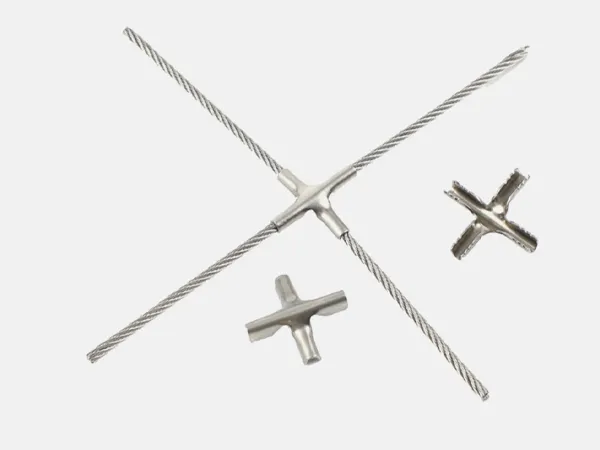

Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

Flexible Stainless Steel Cable Mesh
Type	Knotted cable mesh	Ferrule cable mesh
Combination	Inter-woven	Seamless ferrule
Hole pattern	90 degree diamond hole	60 degree diamond hole
Material	SS304, 316, 316L, etc
Cable diameter	1 ~ 4 mm
Cable structure	7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)
Diamond size	20 ~ 200 mm
Mesh Orientation	Horizontal , Vertical
Feature	Quality material, High flexibility, Anti-corrosion,Longevity, Cost effectiveness, Easy

Stainless Steel Rope Mesh (Ferrule Type), 7 × 7 Construction Wire Rope
Mesh Aperture Width × Height (mm)	Wire Rope Diameter (mm)	Minimum Breaking Load (kN)
25x40	1.0	0.6
25x40	1.6	1.5
30x50	1.0	0.6
30x50	1.6	1.5
35x60	1.0	0.6
	1.6	1.5
	2.0	2.5
40x70	1.0	0.6
	1.6	1.5
	2.0	2.5
50x88	1.0	0.6
	1.6	1.5
	2.0	2.5
	3.0	5.7
	4.0	10.1
60x105; 70x120 80x140; 100x175 120x210; 160x275 180x310; 200x345	1.0	0.6
	1.6	1.5
	2.0	2.5
	3.0	5.7
	4.0	10.1
	5.0	15.9

Stainless Steel Rope Mesh (Knotted), 7 × 7 Construction Wire Rope
Mesh Aperture Width × Height (mm)	Wire Rope Diameter (mm)	Minimum Breaking Load (kN)
25x25	1.2	0.8
25x25	1.6	1.5
30x30	1.2	0.8
30x30	1.6	1.5
40x40	1.2	0.8
	1.6	1.5
	2	2.5
50x50	1.2	0.8
	1.6	1.5
	2	2.5
60x60	1.2	0.8
	1.6	1.5
	2	2.5
	2.4	3.4
	3	5.7
75x75; 90x90 100x100;120x120	1.2	0.8
	1.6	1.5
	2	2.5
	2.4	3.4
	3	5.7
	4	10.1

Stainless Steel Rope Mesh, 7 × 19 Construction Wire Rope
Mesh Aperture Width × Height (mm)	Wire Rope Diameter (mm)	Minimum Breaking Load (kN)
150x260	3.2	7.38
120x208	3.2	7.38
100x173	3.2	7.38
90x156	3.2	7.38

Orientation Options

Stainless steel wire rope mesh can be installed horizontally or vertically depending on the actual engineering needs.

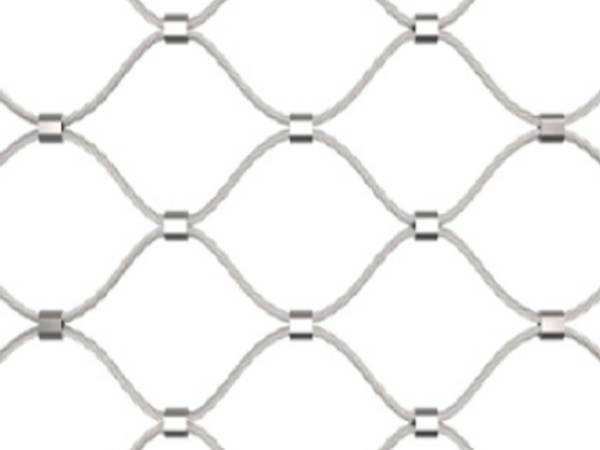

Horizontal

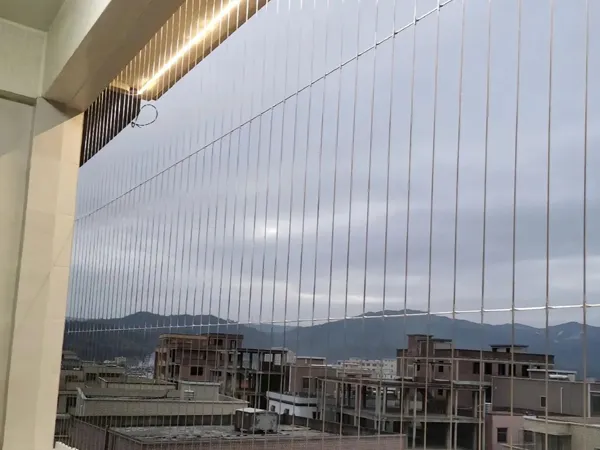

Vertical

Features:

Light weight and high flexibility.
High strength, resistant to fatigue and impact.
Good softness.
Excellent rust-resistance, recyclable and durable.
Outstanding perspectivity and grand appearance.
Maintenance-free and environmentally friendly.

Application

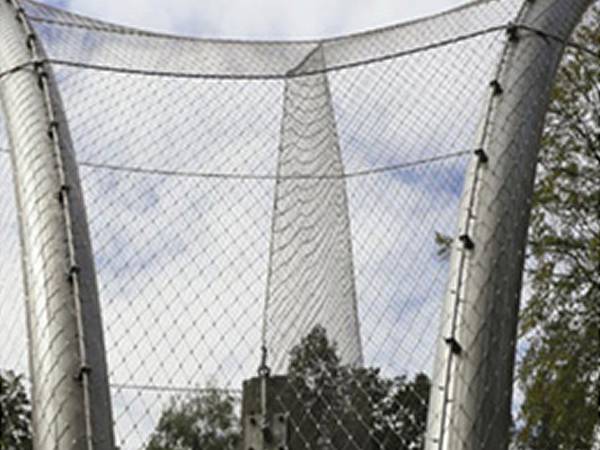

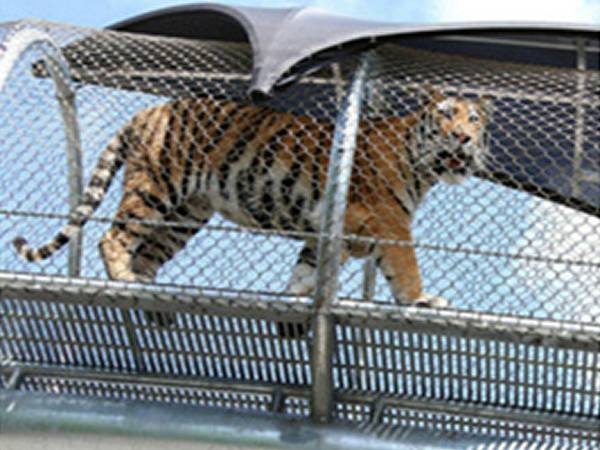

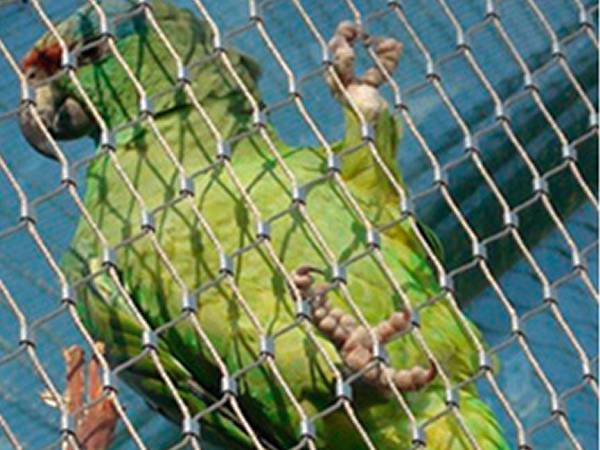

Stainless steel rope net products are used in animal cages, bird nets, animal fences and garden decorations in zoos, marine parks and other similar environments, parks, community protection, doors and windows, etc., and can also be applied to building reinforcement, lifting goods, car sealing and capping, high-grade decoration, sports, acrobatics, home decoration, architectural decoration, fence, also used in mine support, slope protection, security burglar, etc.
